Speed skating rink dimensions with diagram: 400 m long track oval, 4 m lanes, curve radius, 111.12 m short track on a 60 x 30 m rink, laps per race.
A long track speed skating oval is 400 meters around (1,312 feet), with two racing lanes 4 meters (13 ft 1 in) wide and an inner curve radius of 25 to 26 meters (82 to 85 feet). Short track speed skating uses a much smaller oval of 111.12 meters (364 ft 7 in), marked on an ice rink of 60 x 30 meters (197 x 98 feet), the size of an international hockey rink.

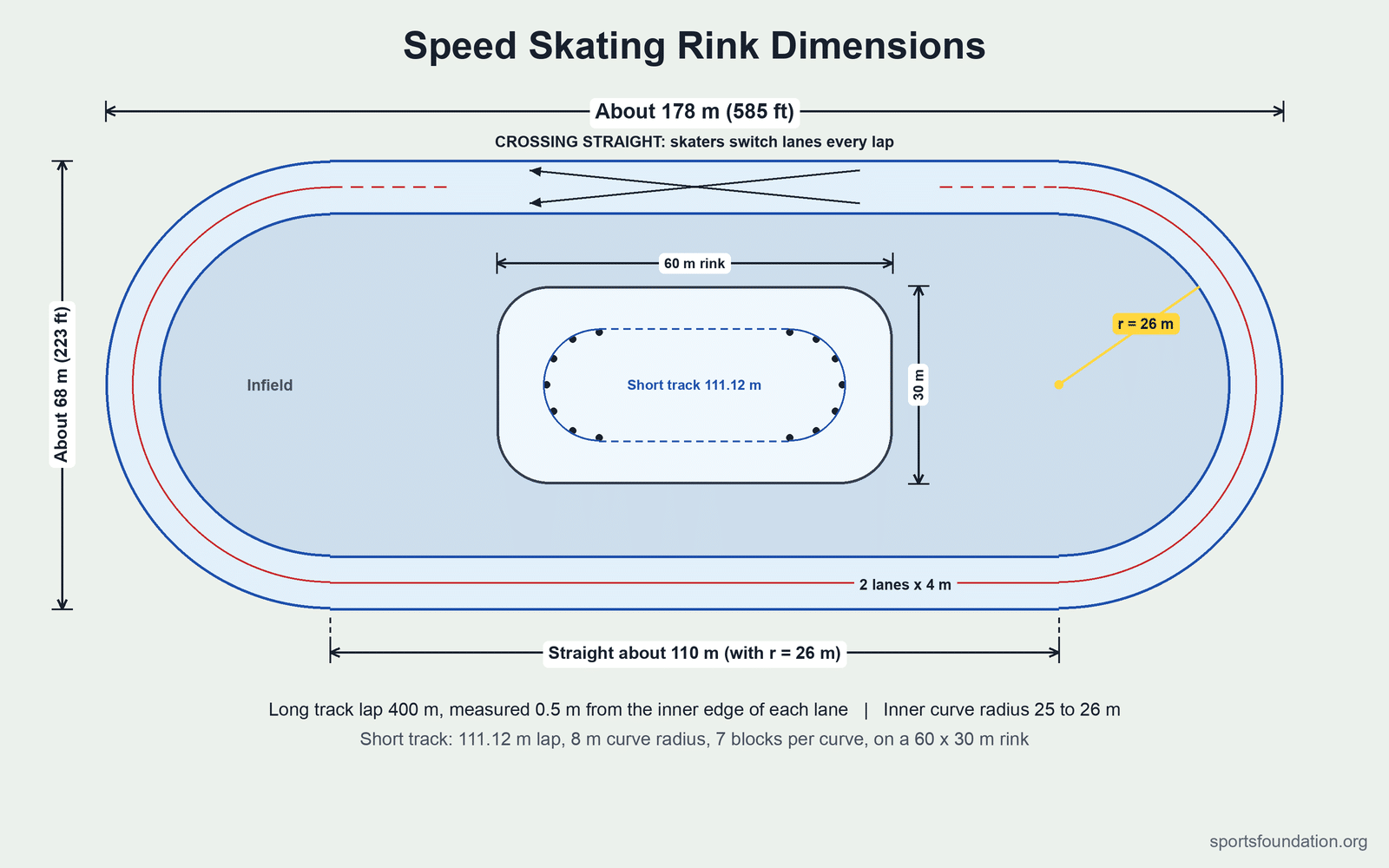

Long track ovals are huge, which is why only a few exist in North America, among them the Utah Olympic Oval near Salt Lake City, the Pettit National Ice Center near Milwaukee and the Olympic Oval in Calgary. Below are the measurements of both tracks, with a diagram that shows a short track rink inside a 400 meter oval, drawn to the same scale.

Jump to:
- Speed Skating Rink Dimensions at a Glance
- How Big Is a Speed Skating Oval?
- The Crossing Straight
- Long Track Distances and Laps
- How Big Is a Short Track Rink?
- Long Track vs Short Track
- Speed Skating Rink vs Hockey Rink
Speed Skating Rink Dimensions at a Glance
| Measurement | Long track | Short track |
|---|---|---|
| Lap length | 400 m (1,312 ft) | 111.12 m (364 ft 7 in) |
| Ice surface | Oval of about 178 x 68 m | Rink of 60 x 30 m (197 x 98 ft) |
| Lanes | 2 racing lanes, 4 m (13 ft 1 in) each | No lanes, skaters race in a pack |
| Curve radius | 25 to 26 m (inner lane) | 8 m (26 ft 3 in) to the markers |
| Straights | About 110 to 114 m | 28.85 m between the curve apexes |
| Measured | 0.5 m from the inner edge of each lane | 0.5 m from the curve markers |
| Curve markers | Painted lane lines | 7 rubber blocks per curve |
| 500 m race | 1 1/4 laps | 4 1/2 laps |
Watch: How Big Is a Speed Skating Oval Compared to Other Sports?
This short animation draws the speed skating oval with its official lines and measurements, then lines it up with 36 other sports surfaces at the same scale, smallest to largest.
How Big Is a Speed Skating Oval?
A long track oval is 400 meters around, with two racing lanes of 4 meters each. The inner curve has a radius of 25 to 26 meters, and the length of each lane is measured 0.5 meters from its inner edge. With a 26 meter radius, the oval takes up roughly 178 x 68 meters (585 x 223 feet), about 11,100 square meters. The ice surface is larger, because ovals also have a warm-up lane and a safety margin with padding along the outside of the curves.
The rules of the International Skating Union (ISU) allow ovals between 333 1/3 and 400 meters, but all international championships and World Cups use 400 meter tracks. The infield of many ovals holds two 60 x 30 meter rinks placed end to end, and it is often used for hockey or short track training.
The Crossing Straight
Long track skaters race in pairs, one starting in the inner lane and one in the outer lane. On every lap they switch lanes on the back straight, called the crossing straight, so both skate the same number of inner and outer curves and cover exactly the same distance. The skater coming out of the outer lane has the right of way. The mass start and the team pursuit are the exceptions, with several skaters on the ice at once.
Long Track Distances and Laps
| Distance | Laps of 400 m | Who skates it |
|---|---|---|
| 500 m | 1 1/4 | Men and women |
| 1000 m | 2 1/2 | Men and women |
| 1500 m | 3 3/4 | Men and women |
| 3000 m | 7 1/2 | Women |
| 5000 m | 12 1/2 | Men and women |
| 10,000 m | 25 | Men |
| Team pursuit | 8 (men), 6 (women) | Teams of three |
| Mass start | 16 | Men and women |
How Big Is a Short Track Rink?
Short track is skated on a rink of 60 x 30 meters (197 x 98 feet), the international hockey size. The track is 111.12 meters around: two straights of 28.85 meters between the apexes of the curves, and two curves with a radius of 8 meters marked by seven rubber blocks each. The lap is measured 0.5 meters outside the blocks. The boards are covered with thick padding, because falls at high speed are common.
To spread the wear on the ice, organizers move the curve markers between several preset positions during an event. Race distances in laps of 111.12 meters:
| Distance | Laps |
|---|---|
| 500 m | 4 1/2 |
| 1000 m | 9 |
| 1500 m | 13 1/2 |
| Mixed relay 2000 m | 18 |
| Women’s relay 3000 m | 27 |
| Men’s relay 5000 m | 45 |
Long Track vs Short Track
| Long track | Short track | |
|---|---|---|
| Venue | Dedicated 400 m oval | Hockey rink, 60 x 30 m |
| Lap | 400 m | 111.12 m |
| Curve radius | 25 to 26 m | 8 m |
| Format | Pairs against the clock | Packs of 4 to 6 skaters, first across the line wins |
| Lanes | Two, changed every lap | None |
The long straights and wide curves of the oval make long track much faster: elite men reach well over 50 km/h (30 mph) in the 500 meters. Short track is slower but tactical, with constant passing in the tight curves. The rules for both are explained in speed skating rules.
Speed Skating Rink vs Hockey Rink
A short track rink is an international hockey rink, while NHL rinks are narrower at 200 x 85 feet (61 x 26 m). A long track oval covers about six times the area of a short track rink. Arena requirements, ice and spectator space are compared in speed skating arena vs ice hockey arena.
| Venue | Size | Area |
|---|---|---|
| Long track oval | About 178 x 68 m | About 11,100 sq m |
| Short track rink (international) | 60 x 30 m (197 x 98 ft) | About 1,800 sq m |
| Hockey rink (NHL) | 200 x 85 ft (61 x 26 m) | About 1,510 sq m (16,300 sq ft) |
| 400 m running track (8 lanes) | About 176.9 x 92.5 m | About 14,500 sq m |
| Curling sheet | 150 ft x 15 ft 7 in (45.7 x 4.75 m) | About 217 sq m |
For more detail, see hockey rink dimensions, running track dimensions and curling sheet dimensions.
More Reading
- Speed skating rules: long track and short track
- Speed skating arena vs ice hockey arena
- Speed skating history
- Speed skating lingo and slang
- The most important speed skating events
- Speed skating quiz
FAQ
How big is a speed skating track?
A long track oval is 400 meters around, with two racing lanes 4 meters wide and an inner curve radius of 25 to 26 meters.
How long is a short track speed skating lap?
One lap is 111.12 meters, measured 0.5 meters outside the curve markers.
How big is a short track speed skating rink?
60 x 30 meters (197 x 98 feet), the size of an international hockey rink.
How many laps is a 500 meter speed skating race?
1 1/4 laps on a long track oval and 4 1/2 laps on a short track.
Why do long track skaters switch lanes?
They change lanes on the crossing straight every lap so both skaters cover exactly the same distance.
How wide are speed skating lanes?
Each of the two racing lanes on a long track oval is 4 meters (13 ft 1 in) wide.
Is a speed skating oval the same size as a running track?
Both laps are 400 meters, but the skating oval has tighter curves (25 to 26 m radius instead of 36.5 m) and longer straights.
Where are speed skating ovals in the US?
The two main indoor ovals are the Utah Olympic Oval near Salt Lake City and the Pettit National Ice Center near Milwaukee.
